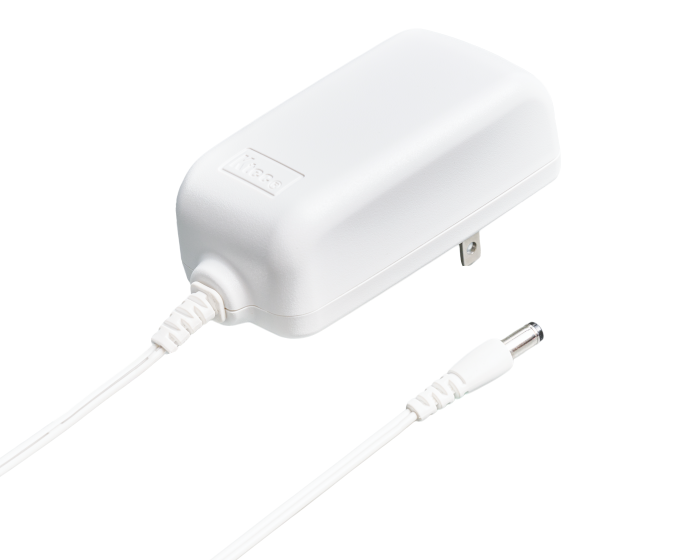

SPS wall-mount

36W KSAP036

external power supplies
Key Features
  • ●High Power Density
  • ●Peak load 4.8A for normal input
  • ●MTBF 50K hours @25℃( MIL-HDBK-217F)
  • ●ESD:air discharging ±15KV,contact discharging ±8KV
  • ●Operating Temp Range(-5℃ to 40℃)
Key Applications
  • ●General power supply
  • ●Output required by mobile hard disk, multimedia player and other electronic product
  • ●Hard disk drive
  • ●Audio&Video product
  1. Input
    • ●Input Voltage : 90 to 264 VAC
    • ●Frequency : 47-50/60-63hz
    • ●Input current : 0.8A (Max) 120 /240VAC
    • ●Inrush current : 50A Max. 240VAC
    • ●Leakage current : 0.25 mA Max
  2. Output
    • ●Over voltage protection
    • ●Over current protection
    • at 110-200% of lo and Auto-recovery
    • ●Electronic short circuit protection
    • ●Ripple&noise 20 MHZ band width:200mV
    • ●Efficiency 84.26% Measured at 25℃
    • ●Operating temperature 0~40℃ Free convection
    • ●Sea level Non-operating temperature -20~ 80℃
    • ●Operating humidity 10-90% RH Non Condensing
    • ●No load power less than 0.3w
  3. Safety standards
    • ●GB4943-2001 ,GB9254-1998 ,GB17625.1-2003
    • ●UL60950-1,1stEdition,AS/NIZS60950-1:2003,IEC/EN60950
    • ●EN60950-1/A11:2004
  4. Certificates and approvals
    • ●CE.GS,CB,UL,FCC,C-TICK,TUV,PSE,CCC
  5. EMI Emission
    • ●Radiation Test&Conduction Test:EN 55022
  6. EMS immunity
    • ●ESD Test:EN 61000-4-2
    • ●RS Test:EN 61000-4-3
    • ●EFT Test:EN 61000-4-4
    • ●Surge Test:EN 61000-4-5
    • ●CS Test:EN 61000-4-6
    • ●DIP Test:EN 61000-4-11
