Sps Desk Top

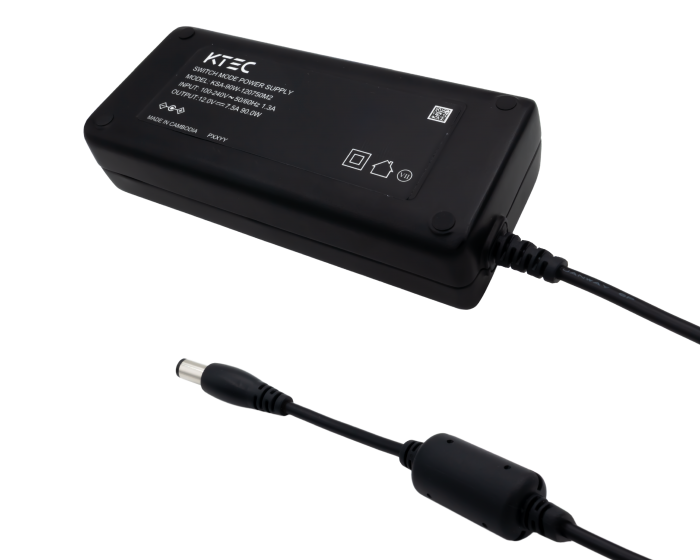

90W KSAFK Series
external power supplies
Key Features
- Light, extra slim, sleek, compact design
- Green power, full complies with CEC level V, MEPS V EUP2011
- High power density
- Extra safe design, have got their respective safety approvals
- Completed protect function
Key Applications
- Mobile Devices
- Pos
- Set-top-box
- ADSL
- Hard disk drive
- Audio & Video product
- Household appliance
-
Input
- Input Voltage: 90 to 264 VAC
- Frequency : 47-50/60-63hz
- Input current : 1.2A (Max) 100 /240VAC
- Inrush current : 45A Max. 120VAC at max. Load
- 45A Max .240VAC at max. Load
- Leakage current: 0.25 mA Max
-
Output
- Over voltage protection
- Over current protection
- at 110-150% of lo and Auto-recovery
- Over temperature protection
- Electronic short circuit protection
- Average efficiency 87% Measured at 25℃
- Operating temperature 0~35℃ Free convection
- Operating humidity 10-90% RH Non Condensing
- Ses level Non-operating temperature -20~80℃
-
Safety standards
- Information technology equipment
- IEC/EN 60950-1, UL 60950-1, CSA C22.2
- No. 60950-1-03
-
Certificates and approvals
- CB , GS , CE , UL , CCC , FCC
-
EMI Emission
- Radiation Test&Conduction Test: EN 55022/FCC Part 15
- Harmonic Test : EN 61000-3-2
- Flicker Test : EN 61000-3-3
-
EMS immunity
- ESD Test:EN 61000-4-2
- RS Test:EN 61000-4-3
- EFT Test:EN 61000-4-4
- Surge Test:EN 61000-4-5
- CS Test:EN 61000-4-6
- DIP Test:EN 61000-4-11
Certificates and approvals
